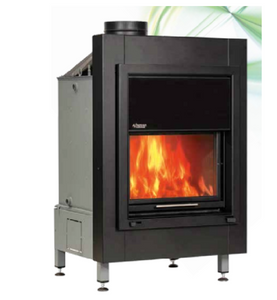

Wood burning fireplace - FAMAR ECO SV 28
The ECO SV thermo-fireplace to date represents the only wood-burning thermo-fireplace capable of synergistically exploiting the three methods of heat transmission: radiation, conduction and convection, thanks to the particular shape of the exchanger (Famar patent) capable of recovering the heat contained in the fumes is also maximized, reaching unequaled thermal efficiency.
• Unsurpassed thermal performance with consumption reduced to a minimum.
• Maximum efficiency even in the absence of an open flame.
The use of physical principles at the service of design studies and fluid dynamics calculations make the Eco SV fireplace stove a real jewel in heating from renewable energy sources, guaranteeing high and constant yields over time, clean fumes and environment at all times. cleaner with emissions of fine dust and residues below the minimum values required by current regulations.
Technical data of ECO SV 28
- Nominal thermal power: kW 30.97
- Power delivered to the fluid: kW 21.60
- Weight: 380 kg
- Water content (in litres): 90
- Hot water production l/h with boiler temperature 70°C: 530
- Efficiency: 88.92%
Characteristics:
ECO SV: THE SELF-CLEANING FIREPLACE
The exclusivity and capacity of the ECO SV exchanger brilliantly avoids the typical problem of all water boilers that use woody biomass:
the deposit of combustion residues (e.g. creosote, pitch and others) on cold surfaces. The exchanger having the fins welded on the surface
of contact and therefore fixed and not removable, makes the structure a dry chamber (patented system) which becomes incandescent as the fumes pass, exceeding the lysis temperature of the unburnt smoke particles and distillates, burning them further. When these combustion deposits burn, they produce additional energy and are transformed into easily removable ash. Throughout the life of the boiler, efficiency remains constant , from the first to the last day of use, because there is no accumulation of creosote or deposits of unburned products in the exchanger, with the advantage of being able to burn any type of wood or biomass without ever getting clogged. .
PATENTED HEAT EXCHANGER
In the ECO SV closed fireplace the fumes are conveyed into the heat exchanger (patented system) made up of suitably sized honeycomb ducts. In these stretches the aspirated fumes are forced to make vortices exchanging energy not only by contact but also by convection (adduction).
Due to its particular shape and design, the exchanger heats up to incandescence, exceeding the lysis temperature of the smoke particles with the result of releasing further energy which is transferred to the water circulating in the interspace, lowering the temperature of the fumes coming out of the smoke duct as well as acting as an abatement cyclone.
FEATURE DETAILS
Large and panoramic combustion chamber with easy access even for large pieces of wood. The vertical retractable door is easy to clean and can also be opened from the side. A veil of air on the internal surface of the door prevents the glass from smoking, guaranteeing optimal aesthetics. Equipped with a convenient compartment for containing accessories. Fireplace worked with Fe 360 pickled sheet metal and finished with anti-corrosion paints.
ECO SV quality details
- Unsurpassed thermal performance with consumption reduced to a minimum.
- Maximum efficiency even in the absence of flame.
- Patented heat exchanger which eliminates the deposit of combustion residues (creosote, pitch).
- Large amount of domestic hot water.
- Self-cleaning.
- Air veil on the internal surface of the door to prevent the glass from smoking.
- It reduces the emissions of fine dust into the environment.
- Façade painted with certified polyester powders for a suitable anti-corrosion and aesthetic surface treatment.
- constant performance over time.
- It burns both dry and resinous wood, even in large pieces, without ever getting clogged.
