Hydro Pellet Stove - EDILKAMIN Vyda H18 / H22 EKleaner

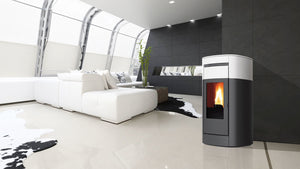

Vyda H is the rigorously designed pellet heating stove, with a two-tone finish, which heats the whole house with hot water and it also produces hot air to heat the installation room (can be deactivated).
- Hearth in steel
• Rear smoke outlet
• Retractable display
• pellet reserve light : indicates that the product will still have autonomy for about half an hour from the time it appears on the display
• daily/weekly programming
• systems configurable from the display, with terminal board for external probes
• Front hot air ventilation (modular and deactivable)
• Leonardo system
• Expansion tank closed
Version EKleaner . (double automatic cleaning)
The system EKleaner automatically cleans the crucible and turbulators, without manual intervention with the product on (without switching off the product).
For more convenient heating and more efficient combustion.
The gearmotor ( 1 ) automatically activates the bar placed under the crucible ( 2 ). The bar in turn moves the turbulators * which clean the flue pipes ( 3 ) and activate the crucible cleaning system ( 4 ) which keeps the holes for the passage of air free. The result is always efficient combustion.
OPTIONAL
• Wi-Fi kits
• GSM dialer
• Radio control kit with receiver
| Technical data | Vyda H 18 min/max |
Vyda H 22 min/max |
|
| length | cm | 62.5 | 62.5 |
| depth | cm | 61.5 | 61.5 |
| height | cm | 121.5 | 121.5 |
| useful power | kW | 4.9/18.7 | 4.9/22.5 |
| useful power to water | kW | 3.8/16.3 | 3.8/20 |
| yield | % | 93.3 | 92.7 |
| fuel consumption | kg/h | 1.1/4.2 | 1.1/5.1 |
| tank capacity | kg | 30 | 30 |
| autonomy | h | 7/27 | 6/27 |
| water content | L | 20 | 20 |
| Ø smoke outlet | cm | 8 | 8 |
| Ø air intake | cm | 5 | 5 |
| total weight | kg | 260 | 260 |
| vol. heatable (depending on the type of system) | m³ | 485 | 585 |
