Manual water cleaning filter - ACQUA BREVETI Bravo
Good boy

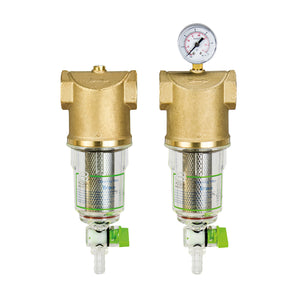

Bravo is a small size manual cleaning filter with dirt drain tap.
Bravo is made with brass head with threads according to EN 10226-1 and EN 228-1 Standards, Grilamid ® bowl (high-strength polyamide) and built-in drain cock. The cartridge is made of stainless steel clamped onto a bushing with an o-ring seal. The particular structure of the cartridge makes it resistant to pressure shocks, eliminating the problem of deformation and crushing; it is available in two variants: with and without pressure gauge 0 - 12 bar.
Bravo performs the water filtration from the inside towards the outside of the cartridge.
Bravo is equipped with a key to open the bowl and a brush to facilitate maintenance operations;
For maintenance and sanitization interventions, it is possible to contact the Authorized Assistance Centres.
| Fittings | ½" F | ½" F | ¾” F | ¾” F | 1" F | 1" F |
| Gauge | no | Yes | no | Yes | no | Yes |
| Code | FT300 | FT310 | FT302 | FT312 | FT304 | FT314 |
| Offer description |  |
|
|
|
|
|
| Data sheet | |
|||||
| Instructions | |
|||||
| dwg drawings |  |
|
|
|
|
|
