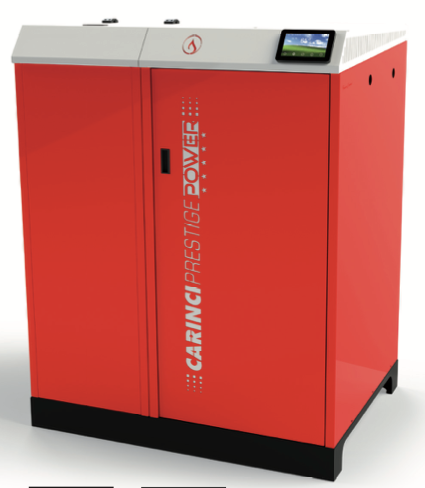

Multi-fuel BOILER - CARINCI Prestige Power 270
Multi-fuel BOILER - CARINCI Prestige Power 270

Multi-fuel BOILER - CARINCI Prestige Power 270

Tax included. Shipping calculated at checkout.
Only 0 left!

***Delivery times for this product have lengthened, we kindly ask you to contact us to check availability and to receive a personalized quote***

3 BOILERS IN ONE PRODUCT

The new Carinci Boiler Series Prestige is a heat generator that works with pellets and wood . The Carinci Combined Technology , present in it, allows automatic programmed ignition with pellets and wood.

IT CAN BE POWERED:

  • Only with pellets (shredded fuels)
  • Only with wood
  • In combined pellet - wood

The Carinci Combined Technology of the Prestige allows you to switch from one fuel to another automatically.

It can be loaded with wood and programmed to turn on , once the wood is finished, it can continue to heat by switching automatically to pellets .

The new Carinci Prestige boiler is suitable for those who want to have both pellet and wood fuel supply.

STANDARD EQUIPMENT

  • PROGRAMMABLE CONTROL UNIT WITH 7.5 INCH TOUCH SCREEN PANEL WHICH ALLOWS SIMPLE CONFIGURATION FOR DIFFERENT TYPES OF SYSTEM
  • PUFFER PROBE

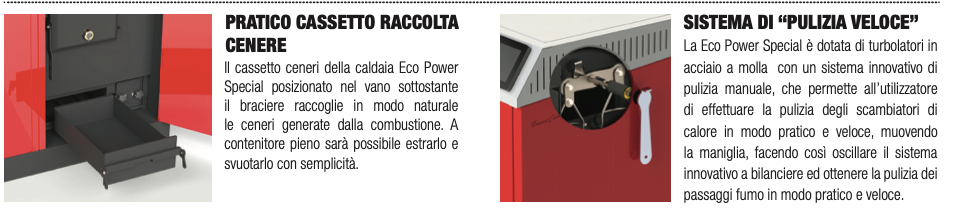

  • MANUAL SYSTEM "FAST CLEANING" HEAT EXCHANGERS
  • ASH COLLECTION SYSTEM THROUGH EASILY EXTRACTABLE DRAWER
  • LARGE LATERAL PELLET TANK 140KG
  • SIDE SPECIAL PELLET KIT (MORE POWERFUL ENGINE, LARGER PELLET CONDUIT WITH UPDATED COGLEE AND BURNER)
  • ACCESSORIES FOR CONNECTION TO THE SYSTEM ONLY ON MODEL 270-350
  • INFINITY KIT PREPARATION

PRESTIGE POWER HEATING ONLY

  • Manual reset thermostat
  • Double safety valve
  • Circulator High efficiency system
  • LT12 diaphragm expansion vessel
  • Drain tap
  • Auto Vent Jolly
  • Manual vent valve
  • Predisposition kit infinity

PRESTIGE POWER HEATING ONLYPLUS

  • Thermal discharge valve
  • Manual reset thermostat
  • Double safety valve
  • Circulator High efficiency system
  • LT12 diaphragm expansion vessel
  • Drain tap
  • Auto Vent Jolly
  • Manual vent valve
  • Anti-condensation valve kit
  • 2 ball valves with unions
  • Filling unit with pressure gauge
  • Heavy brass fittings
  • Predisposition kit infinity

PRESTIGE POWER HEATING + DHW

  • DHW heat exchanger in finned copper
  • Manual reset thermostat
  • Double safety valve
  • Circulator High efficiency system
  • LT12 diaphragm expansion vessel
  • Drain tap
  • Auto Vent Jolly
  • Manual vent valve
  • Predisposition kit infinity

PRESTIGE POWER HEATING + DHW PLUS

  • DHW heat exchanger in finned copper
  • Thermal discharge valve
  • Manual reset thermostat
  • Double safety valve
  • Circulator High efficiency system
  • LT12 diaphragm expansion vessel
  • Drain tap
  • Auto Vent Jolly
  • Manual vent valve
  • Anti-condensation valve kit
  • 2 ball valves with unions
  • Filling unit with pressure gauge
  • Heavy brass fittings
  • Predisposition kit infinity

      PRESTIGE POWER boiler – (Pellets) 270 350 500
      NAME REDUCED NAME REDUCED NAME REDUCED
      Thermal Power Burned kW 29.42 8.98 34.91 10.04 55.92 15.91
      Nominal Thermal Power kW 27.14 8.47 32.24 9.67 51.8 14.96
      CO at 10% O2 mg/N㎥ 33.33 99.08 33.54 98.59 34.33 96.42
      NOx at 10% O2 mg/N㎥ 159.93 171.97 160.72 173.41 163.73 179.76
      OGC at 10% O2 mg/N㎥ 6.38 7.05 6.4 7.25 6.46 8.12
      Powders at 10% O2 mg/N㎥ 13.05 16.67 13.13 16.55 13.42 16.03
      CO at 13% O2 mg/N㎥ 24.24 72.06 24.39 71.7 24.97 70.12
      NOx at 13% O2 mg/N㎥ 116.31 125.07 116.89 126.12 119.08 130.73
      OGC at 13% O2 mg/N㎥ 4.64 5.13 4.65 5.27 4.7 5.91
      Powders at 13% O2 mg/N㎥ 9.49 12.12 9.55 12.04 9.76 11.66
      Thermal efficiency % 92.26 94.32 92.34 94.27 92.63 94.05
      Smoke Outlet Average Temperature ℃ 131.8 90.1 129.25 92.5 126.7 94.9
      Smoke mass flow g/s 22.46 6.66 31.86 8.79 41.27 10.92
      Environmental Class (DM 186/2017) Stars ★★★★★ ★★★★★ ★★★★★
      Minimum chimney draft Pa 12±2 12±2 12±2
      Maximum pressure allowed (system circuit) Cafe 3 3 3
      Maximum pressure allowed (DHW circuit) Cafe 3 3 3
      Boiler water content lt 135 135 135
      Net weight PRESTIGE POWER kg 687 687 687
      Net weight PRESTIGE POWER INFINITY kg 697 697 697
      Net weight PRESTIGE POWER SELF CLEANING kg 697 697 697
      Pellet tank capacity kg 140 140 140
      Hourly consumption kg/hr 5.8 1.67 8.3 2.41 10.8 3.15

      PRESTIGE POWER boiler – (Wood) 270 350 500
      NOMINAL NOMINAL NOMINAL
      Thermal Power Burned kW 29.88 34.83 55.54
      Nominal Thermal Power kW 27 31.46 50
      CO at 10% O2 mg/N㎥ 423 428.15 449.57
      NOx at 10% O2 mg/N㎥ 175 175.37 176.92
      OGC at 10% O2 mg/N㎥ 19.58 19.67 20.06
      Powders at 10% O2 mg/N㎥ 40.02 40.04 40.1
      CO at 13% O2 mg/N㎥ 307.64 311.38 222.42
      NOx at 13% O2 mg/N㎥ 127.27 127.54 87.53
      OGC at 13% O2 mg/N㎥ 14.24 14.31 9.93
      Powders at 13% O2 mg/N㎥ 11.29 29.12 19.84
      Thermal efficiency % 90.36 90.3 90.03
      Smoke Outlet Average Temperature ℃ 124.6 127 129.5
      Smoke mass flow g/s - - -
      Environmental Class (DM 186/2017) Stars ★★★ ★★★ ★★★
      Minimum chimney draft Pa 12±2 12±2 12±2
      Maximum pressure allowed (system circuit) Cafe 3 3 3
      Maximum pressure allowed (DHW circuit) Cafe 3 3 3
      Boiler water content lt 135 135 135
      Net weight PRESTIGE POWER kg 687 687 687
      Net weight PRESTIGE POWER INFINITY kg 697 697 697
      Net weight PRESTIGE POWER SELF CLEANING kg 697 697 697
      Pellet tank capacity kg - - -
      Hourly consumption kg/hr - - -
